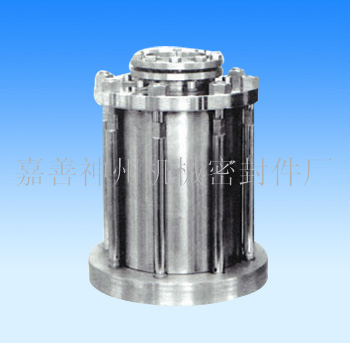

Products Name:Mechanical seal for type 2000 kettle

Products Details:

Structure characteristics:
The container type structure has the advantages of versatility, no drive direction and short axial installation. It is commonly used in conjunction with the hydraulic pump station.

Operating parameters:
Medium: oil, water, alkaline, acid and other general medium; pressure: type 1, type 2, type 4 PN0~0.6MPa 3 PN-0.1~1.6MPa; speed: temperature: -40 = 2m/s; ~180 DEG C; when the temperature exceeds 180 degrees, shall be provided with a cooling water tank, the installation height of L1 or L2 and 60mm

1. kettle mouth "O" shape circle, O RING 8. box "O" ring O RING
2., the static ring "O" ring 9. skeleton oil seal
3. medium end stationary ring 10. bearings
4. medium end moving ring 11. action ring
5. move ring "O" ring 12. spring
6. sleeve "O" ring 13. atmospheric end stationary ring
7. spring
